Cottesloe

Name: Cottesloe
Brand: House of Bamboo
SKU: BATT-SEAC-COTTESLOE-W396-H1830-T
Price: 363.63 AUD
Availability: InStock

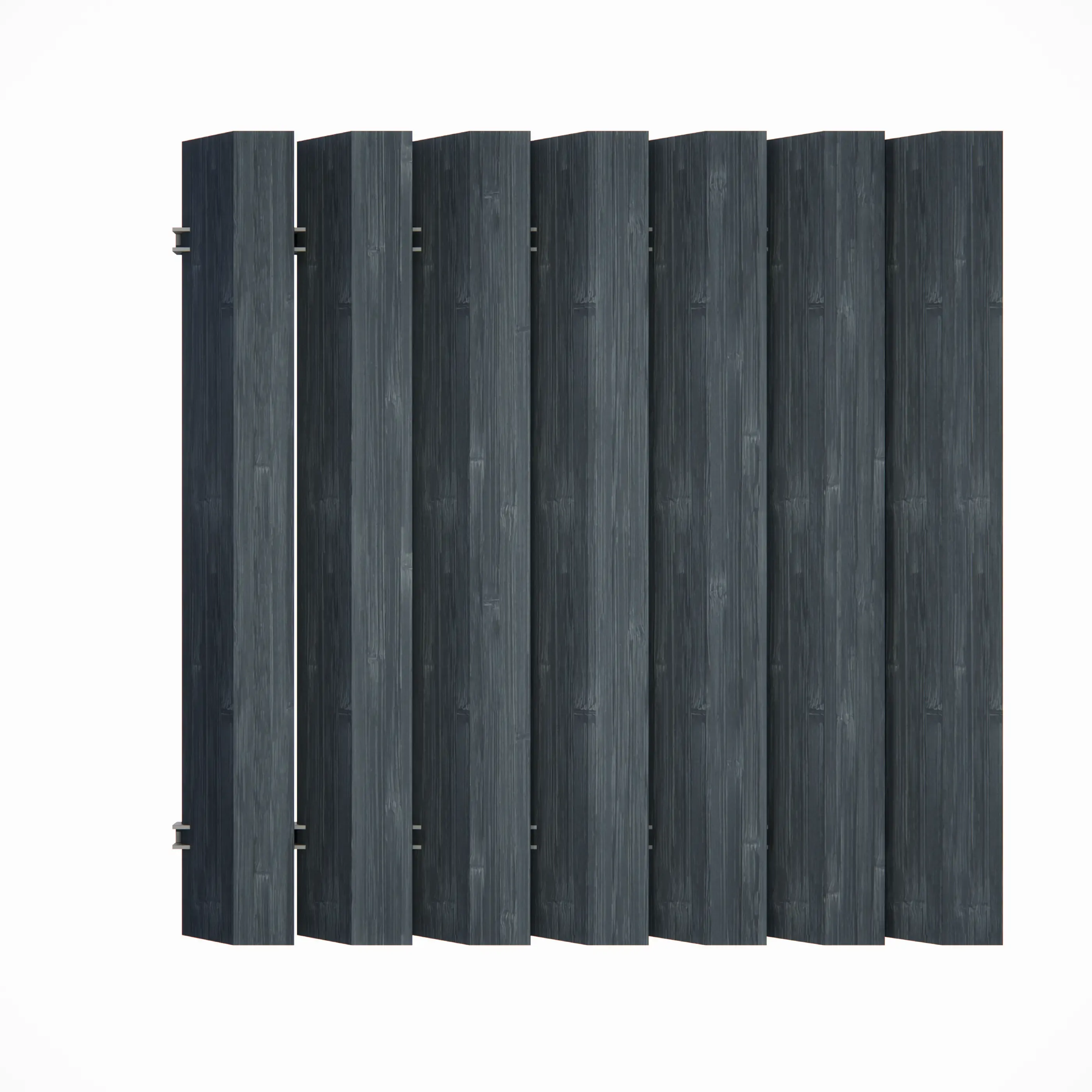

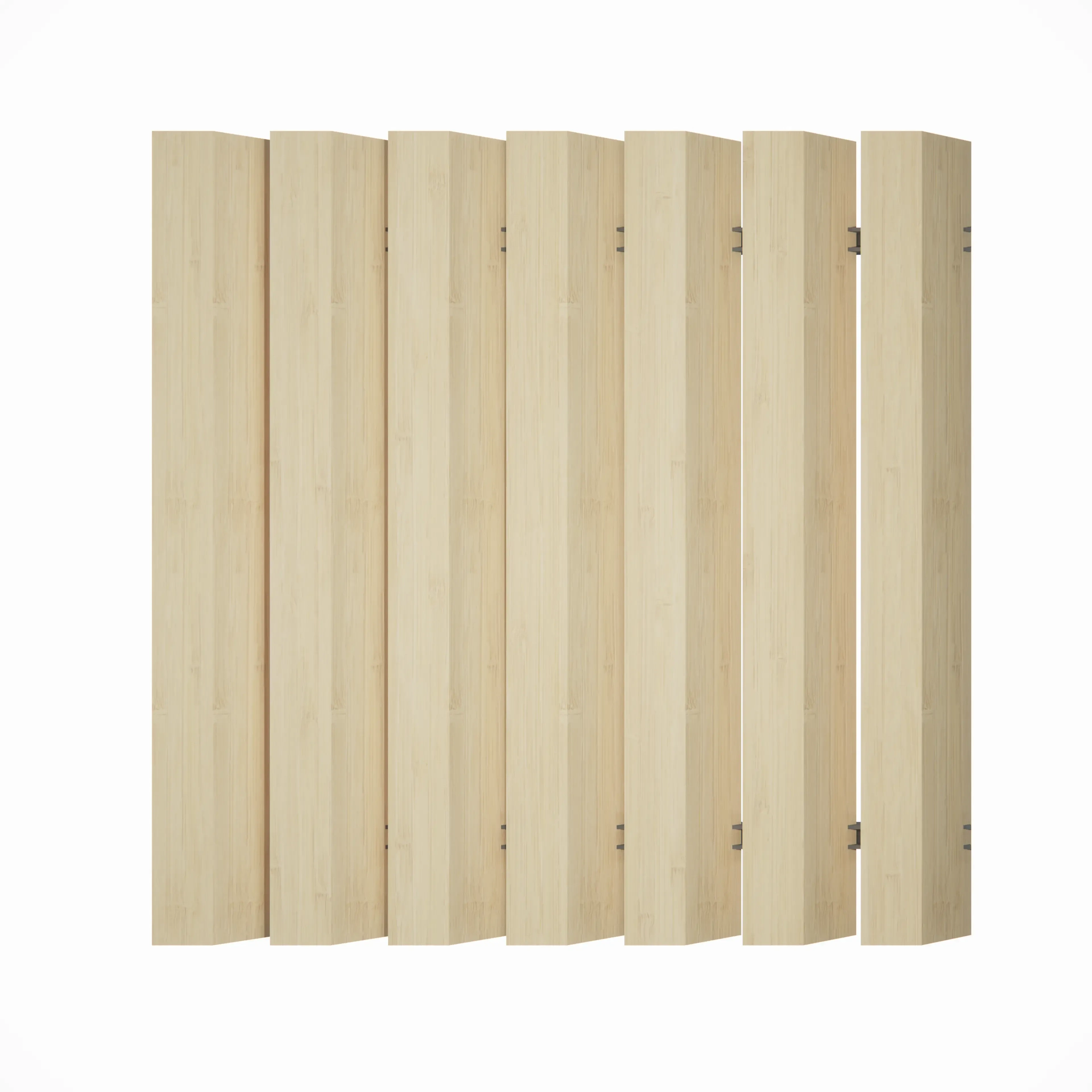

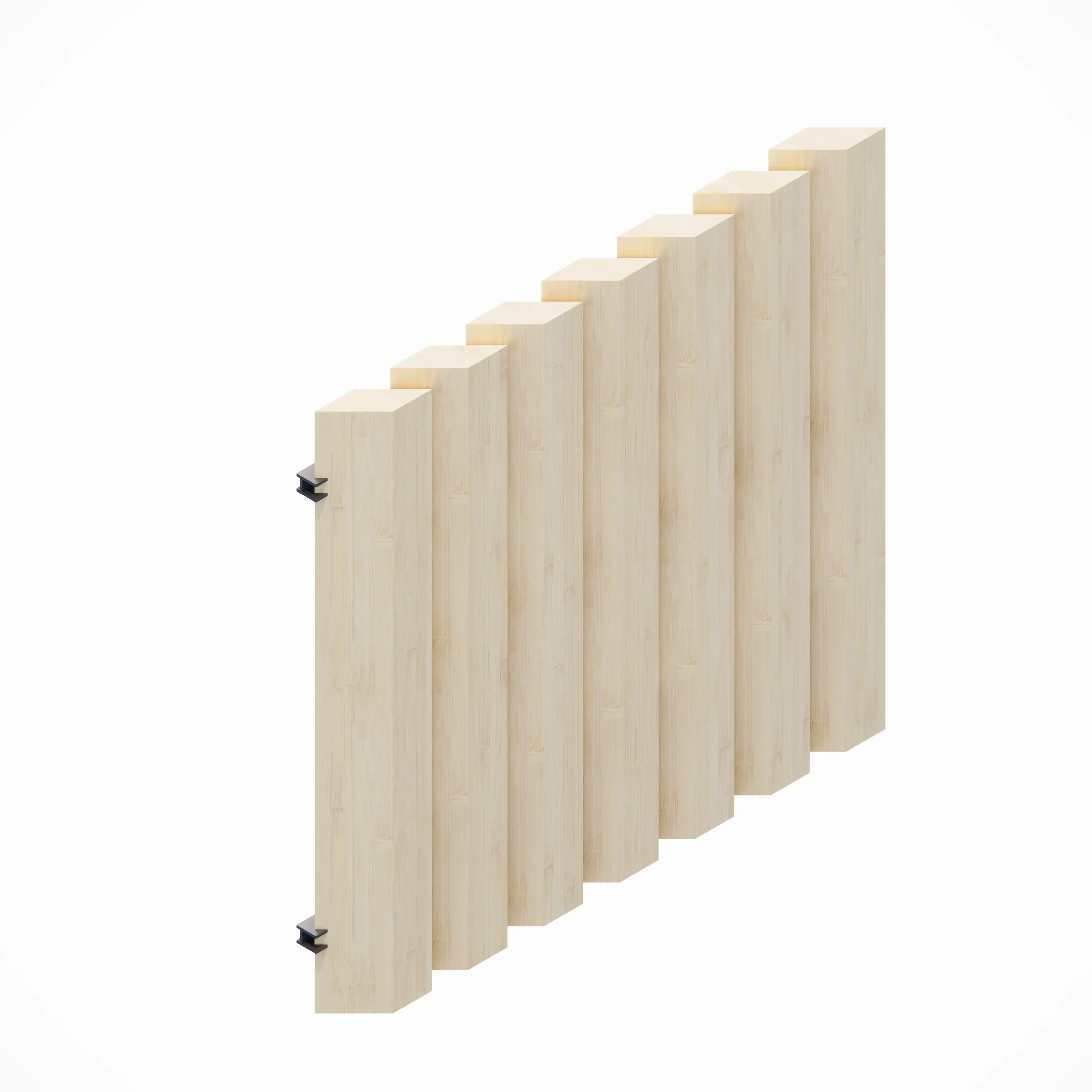

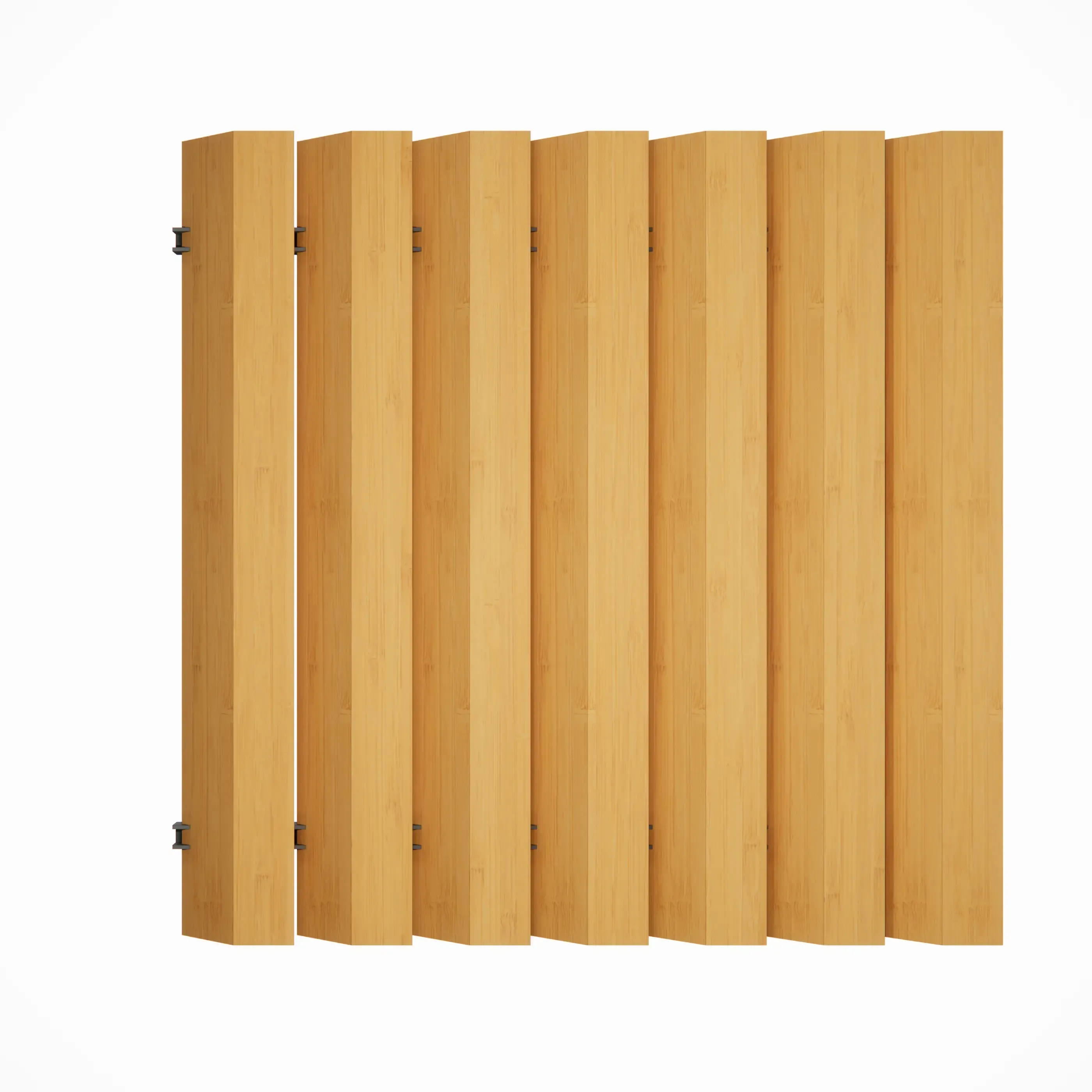

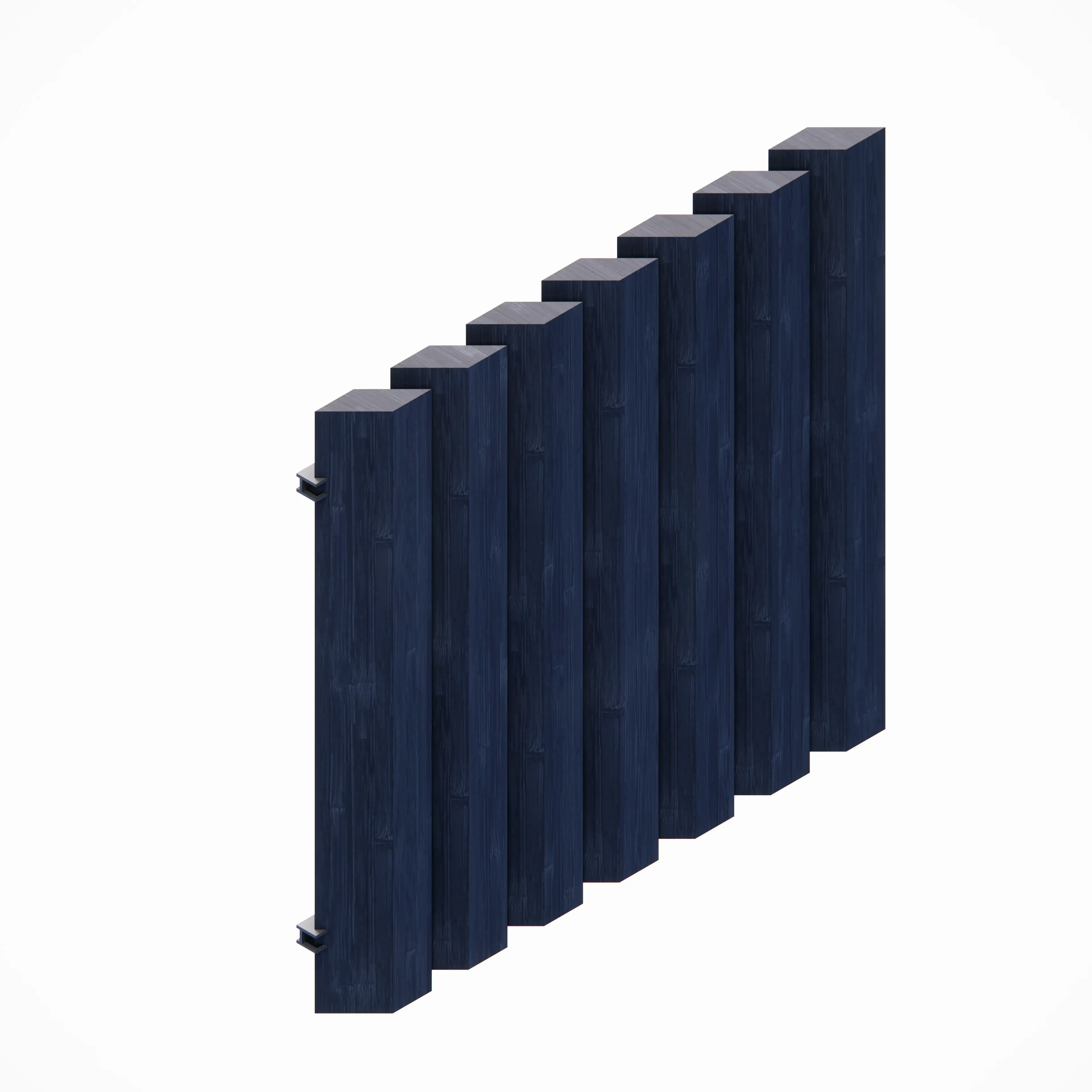

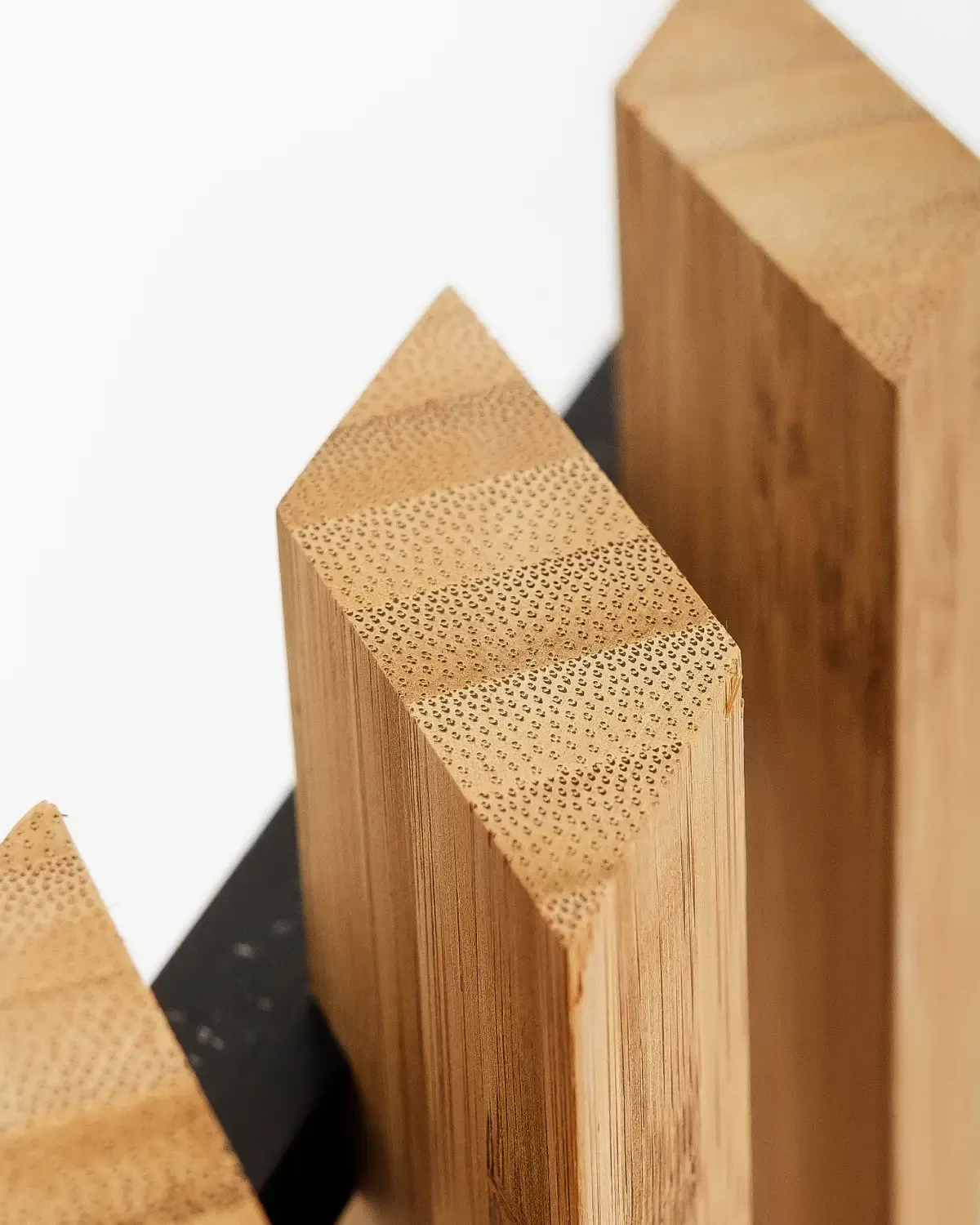

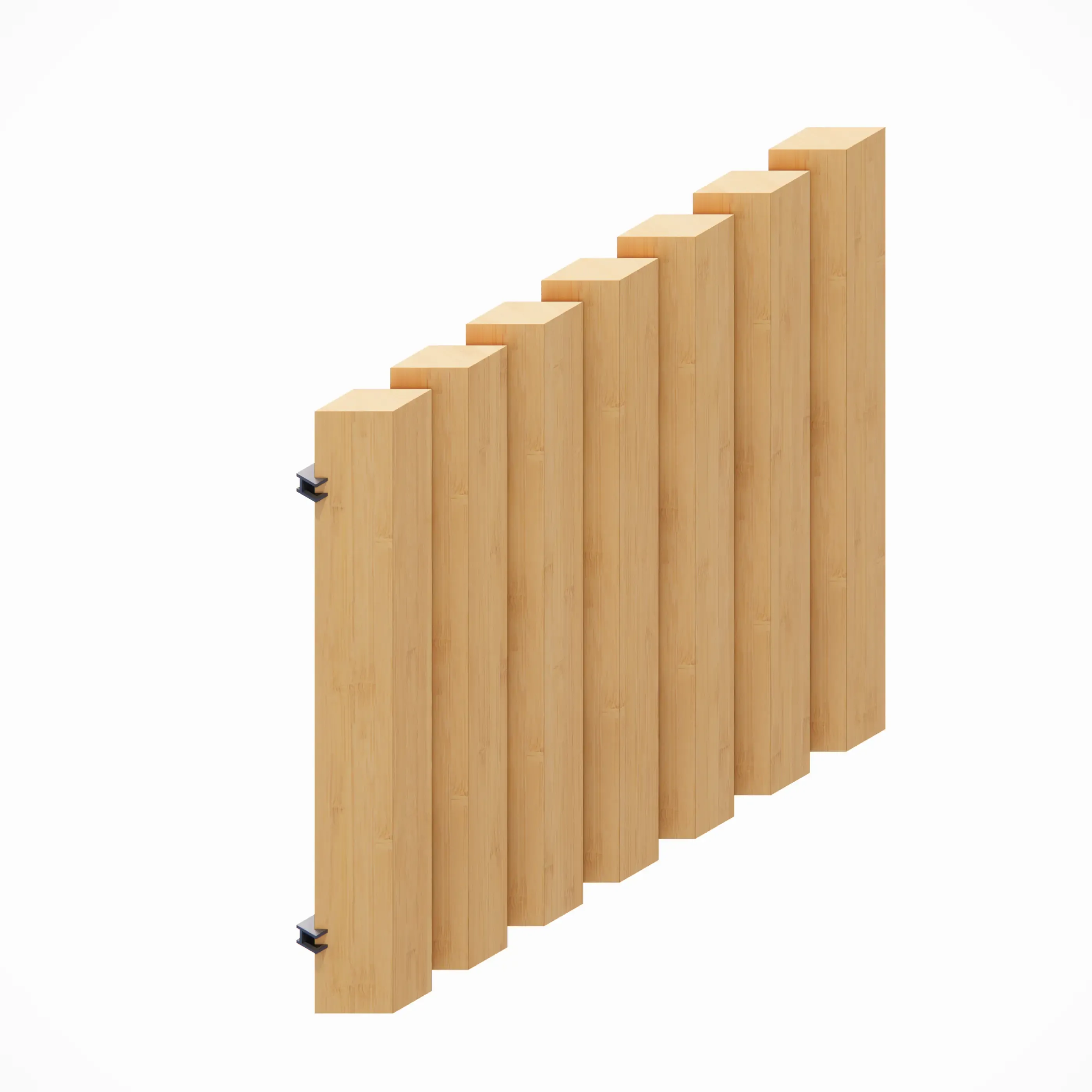

The Cottesloe profile introduces angled slats that offer graduated privacy while maintaining open airflow. This design allows fresh air to circulate freely while softening visibility from key angles, making it perfect for urban balconies, terraces, and multi-residential projects where airflow and privacy are equally important. The angled geometry adds dynamic depth and movement to façades, enhancing architectural contrast through shadow and light.

Cottelsoe offers adaptable design flexibility for contemporary exterior and interior applications.

Each panel arrives preassembled for faster installation and a clean, unified appearance across surfaces.

How much surface do you need to cover?

Batten Spacing: 28mm
Panel Dimensions:
- 1832mm x 396mm x 40mm
Batten
- 30mm [L] x 28mm [W]
Finishes: Natural, Teak, Black, Raw
Durability: Class 1–2 (15–25 years expected lifespan) per EN 350
Fire Classification: Class 3 (NCC compliant) Bevel Edge: No Weight Per Piece 1830mm Panel = 7.5kg 2440mm Board = 10kg

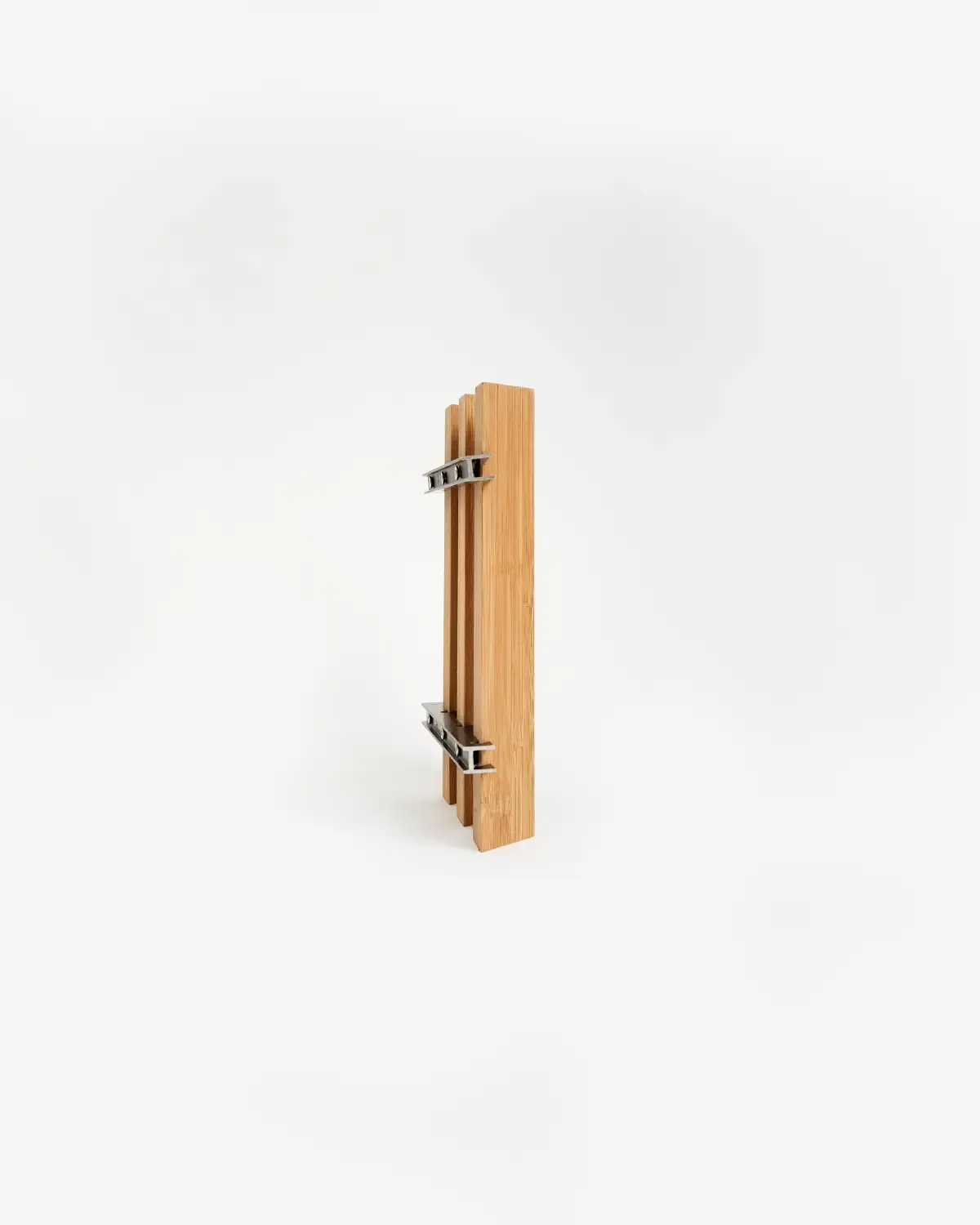

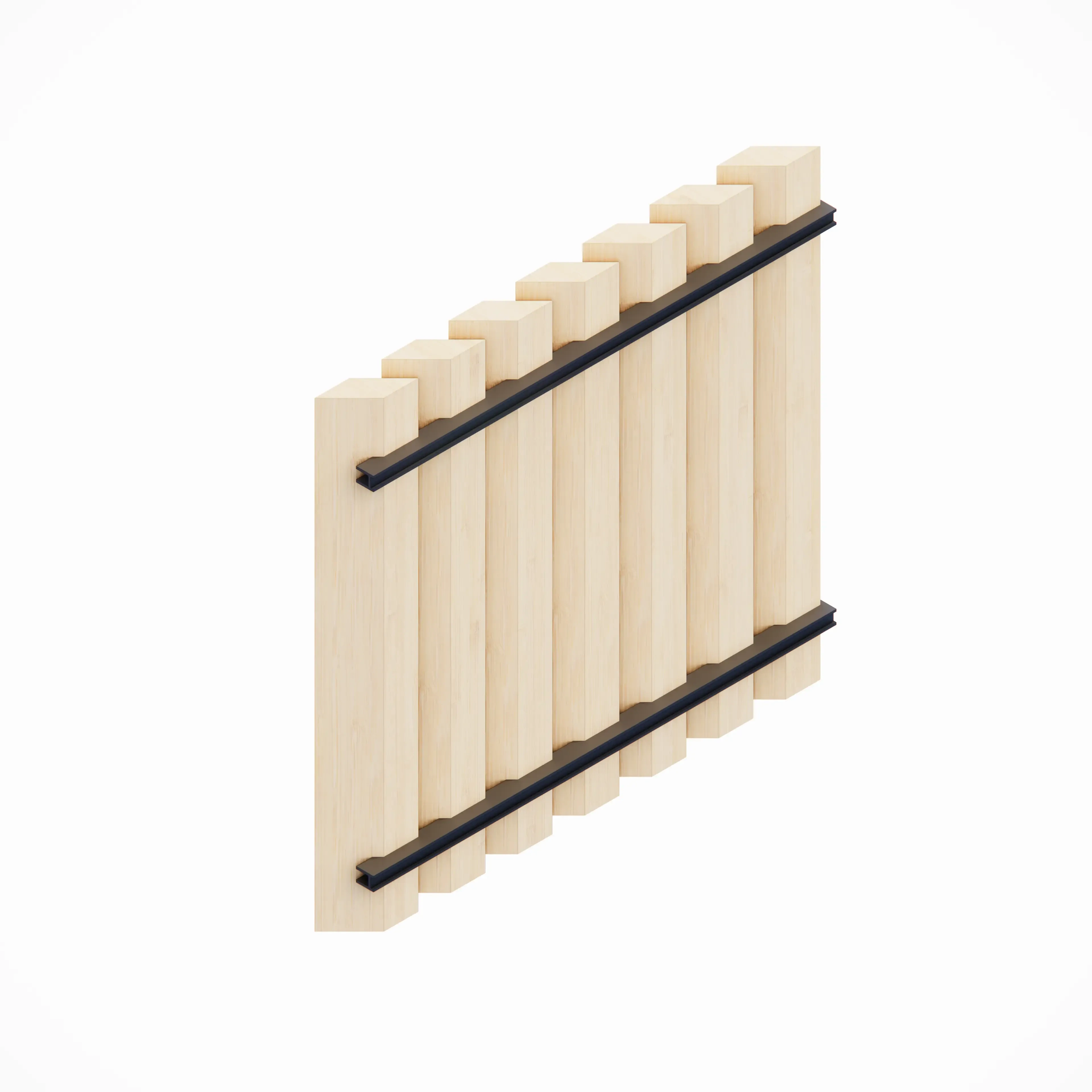

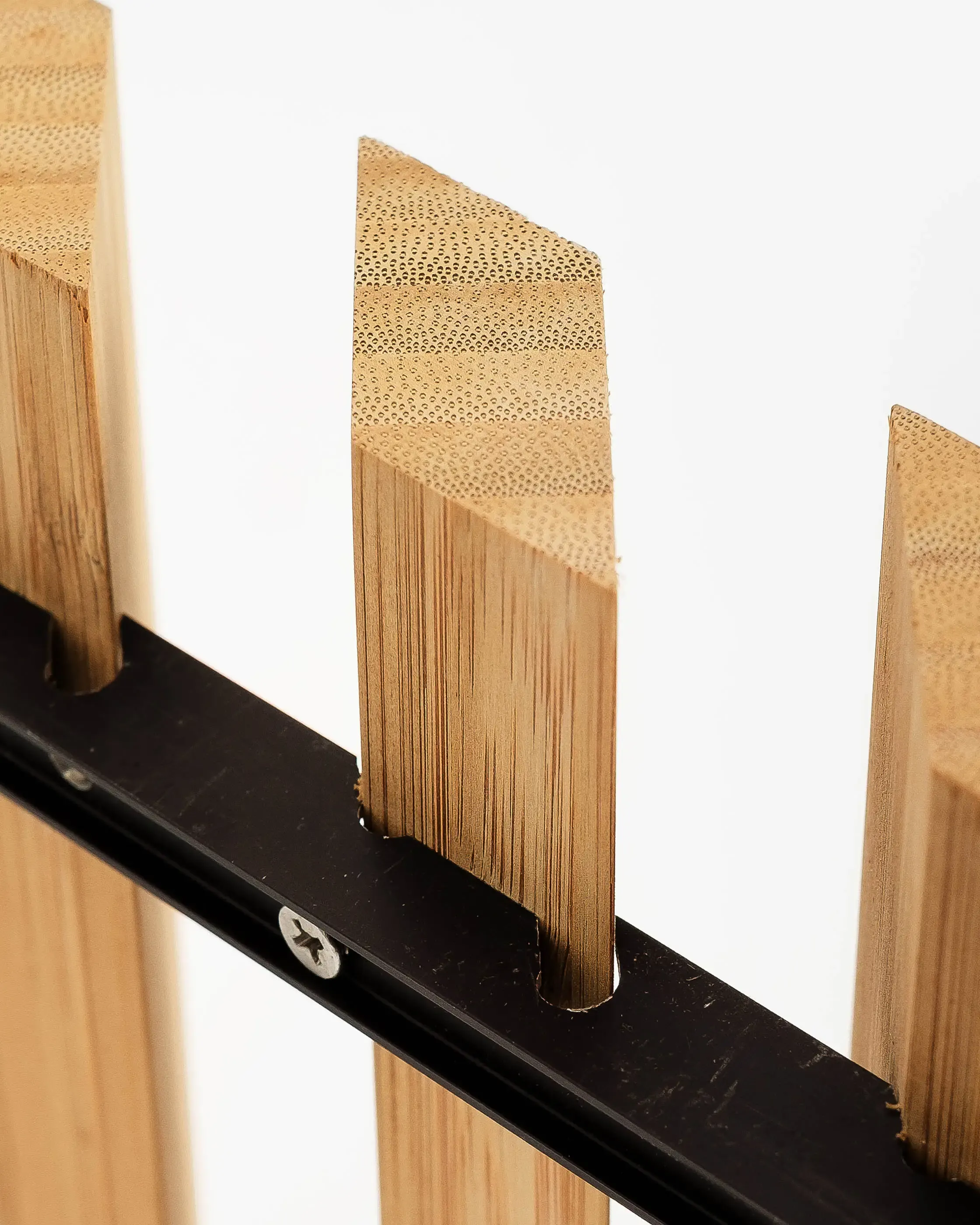

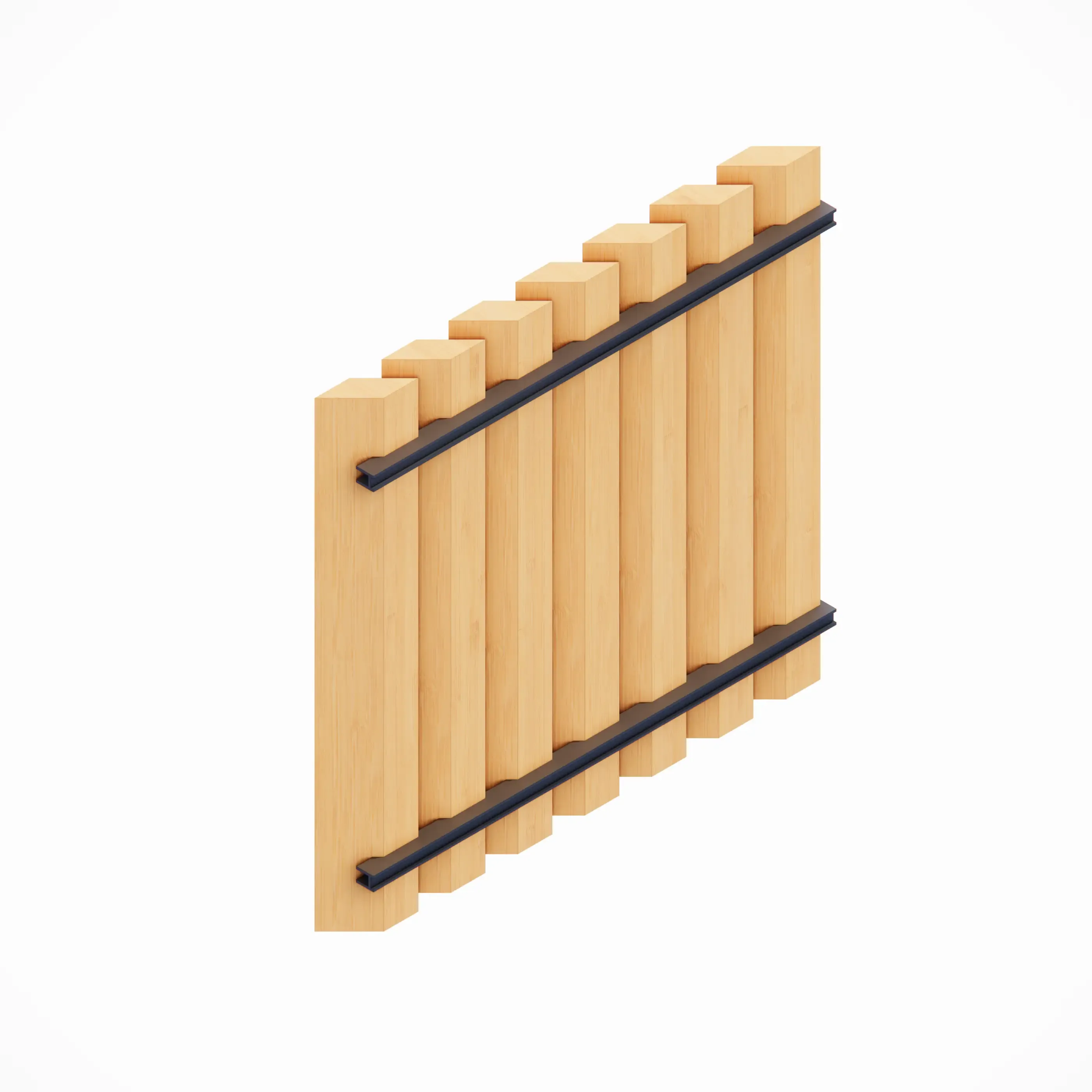

Engineered laminated Phyllostachys edulis bamboo battens with anodised aluminium interspacing strips
Sustainability Certifications:
- Global GreenTag Level A
- HealthRate Platinum
- FSC Certified (on request)
- Suitable for Green Star, LEED, WELL, and IS Rating schemes
Standard options are WOCA® Denmark water-based oils in Raw Natural, Teak or Black. Other colours are availapecial order.
Vernites® Italian water-based tintometric finishes with 26 colour options and variable gloss levels

Install screens using stainless steel or powder-coated mounting hardware compatible with aluminium strips.
Ensure panels are securely fastened over flat, stable structural frames.
Maintain consistent batten alignment for seamless spacing across joints.
Apply supplied or matching bamboo cover strips (available in raw, teak, black) to conceal fastenings and joins.
Pre-finished products require no on-site sealing; raw versions may be oiled using WOCA® or Vernites® systems.
Ensure adequate drainage and airflow when installed externally to minimise moisture retention.

External lifespan: 5 years with recommended maintenance.
Internal lifespan: 7 years when installed undercover.
Bamboo is a natural material; variations in colour, grain, and texture are expected and not considered defects.
Store flat, dry, and out of direct sunlight.
Exposure to excessive moisture prior to installation may result in mould or surface discolouration.
Noosa panels are custom-cut and ordered specifically; non-returnable once processed.
